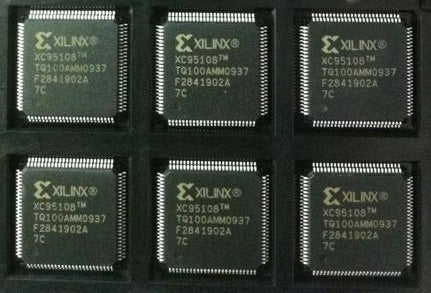

XC95108-7TQ100C

The XC95108-7TQ100C is a high-performance CPLD engineered for advanced logic integration with in-system programming and test capabilities. Built on eight 36V18 Function Blocks, it delivers 2,400 usable gates with rapid 7.5 ns propagation delays. Flexible power management allows configuration of macrocells in standard or low-power modes, with unused cells automatically disabled to minimize consumption. Ideal for general-purpose digital applications requiring precision timing and efficient power utilization.

Power dissipation can be reduced in the XC95108-7TQ100C by configuring macrocells to standard or low-power modes of operation. Unused macrocells are turned off to minimize power dissipation.
Operating current for each design can be approximated for specific operating conditions using the following equation:
ICC (mA) = MCHP (1.7) + MCLP (0.9) + MC (0.006 mA/MHz) f
